trz bump steer

[gman415]

What size holes do I need for the bump steer kit on stock spindles?



[Killerdave8813]

If I understand the question correctly you have to open up the tapered hole where the tie rod end hooks up to 1/2" straight through effectivly elliminating those spindles from replacing stock ever again!!



[gman415]

Thanks Dave, Ya thats it. I have already cut these spindles up to put the TRZ rack and Wilwood brakes.



[TRZ Motorsports]

Yep, 1/2" hardware and 1/2" hole



[Kirbystud]

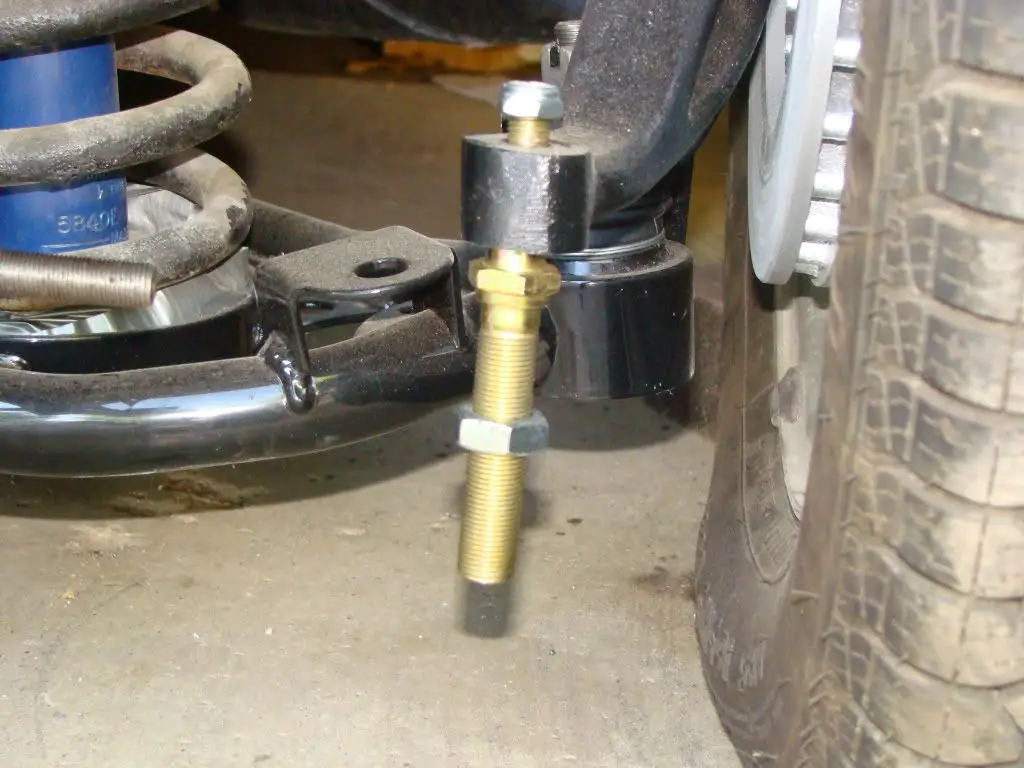

Here what I used... You have to go to a 5/8 joint and then you use a spacers on the top and a double or lock nut on the bottom to ajust your tie rod up or down if you ever change your ride height.
They are a little long so I shorten mine... Plus you don't have to drill your spindles.....

Speedway Motors I think $9.95 each... I now have QA1 spring and shock so they worked good for me.



[Killerdave8813]

Now that's a pretty cool peice of hardware!!!



[gman415]

Yep, 1/2" hardware and 1/2" hole

The reason I ask, was the tapered spacers. I didn't know if the hole was suppose to be big enough for them to go into the hole some.



[gman415]

Here what I used... You have to go to a 5/8 joint and then you use a spacers on the top and a double or lock nut on the bottom to ajust your tie rod up or down if you ever change your ride height.
They are a little long so I shorten mine... Plus you don't have to drill your spindles.....

Speedway Motors I think $9.95 each... I now have QA1 spring and shock so they worked good for me.

I have a friend that uses those on a 56'. Works fine.
