Some carbed LS1 info

[Doober]

Thought I'd do some looking for anyone interested in articles, part numbers, and some pricing on carbed intakes/ignition setups for the LS motors (sticky?), please add if there's anything I missed! enjoy

•

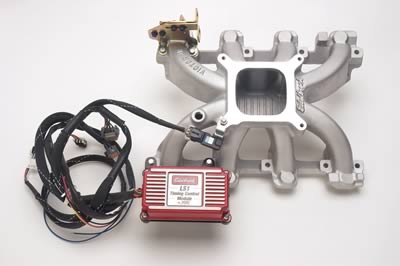

  [*]Edelbrock Victor Jr. intake with LS ignition controller - Summit Racing site



  [*]GM LS ignition controller - 19171130, $333.84 (gmpartsdirect.com)

  [*]GM LS1/LS2/LS6 4bbl. intake - 88958675, $374.40 (gmpartsdirect.com)

  [*]GM Front mount distributor cover (should you so choose) - 88958679, $376.48 (gmpartsdirect.com, distributor use Proform #66969R, Performance Distributors #31820)

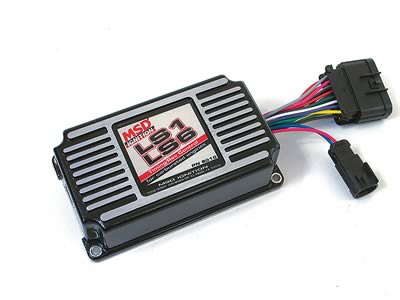

  [*]MSD LS1/LS6 controller - Summit Racing price

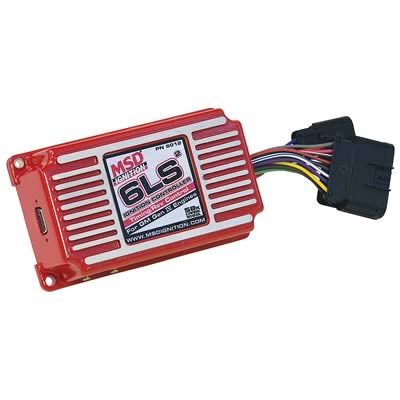

  [*]MSD LS2/LS7 controller - Summit Racing price

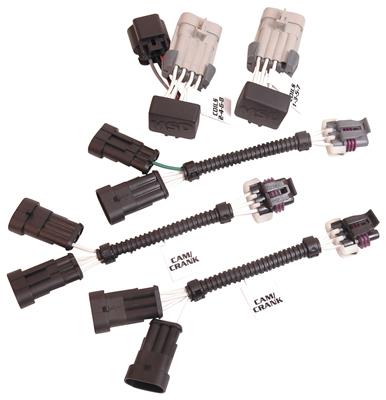

  [*]MSD ignition controller extention harness (for LS1 controller) - Summit Racing price




  [*]MSD adapter harness for use with GM EFI/6010 ignition controller (Standalone? Probably not) - Summit Racing price



<i></i>



[78Bu88SS]

FYI, Edelbrock has all the LSx intakes on backorder til who knows when. Made me stay with fuel injection.



[Doober]

Nice, looks like I'll be piecin' the setup together then



[64malibu79]

If your going the L92 head route:

L92 aluminum head, complete, 2 12582713 Scoggin-Dickey 798.50
Rocker arms, intake, 8 12569167 Scoggin-Dickey 70.00
Rocker arms, exhaust, 8 10214664 Scoggin-Dickey 70.00
Rocker support stand, 8 12600936 Scoggin-Dickey 11.98
Rocker-arm bolts, 8 12560961 Scoggin-Dickey 61.92
Valvesprings, kit, LS6 (16) 12499224 Scoggin-Dickey 52.25
GMPP L92 carb intake 25534401 Scoggin-Dickey 299.50
Fel-Pro LQ4 head gasket 1027 Summit Racing 41.95

HTH



[Doober]

Is that basically the parts list needed to run the L92 heads?



[64malibu79]

I believe so , the spring upgrade is due to the article using the GM Hot Cam, I have that P/N too if you think it should be added



[455_82malibu]

dont forget Wegner Motorsports, they designed almost everything in house and may have the intakes in stock.

http://www.wegnerautomotive2.com/productsservices.htm



[Jordan81]

l 92 heads won't work with a ls1 block... although they will work with the 6.0L truck blocks, thats the route i took. also you can still use those cast intakes with something like a wilson elbow...again that the route i'm goin



[Deuce4935]

Are both those harnesses needed for the carbed setup?



[Doober]

Are you talking about these two?

If so then no, the 2nd one is for adapting to the factory EFI harness somehow (I don't know much anything about the details on it, whether the factory computer is needed, etc...). The first one may be needed to plug everything in, but I think it's more for if you plan to mount the controller somewhere besides on the intake.
