 Post subject: Re: HID Headlights?
 Post Posted: Sun Jun 23, 2013 11:17 pm
Offline
Amateur Racer
User avatar

Joined: Tue Apr 23, 2013 4:28 pm
Posts: 108
Location: Baton Rouge, La
don't get me wrong they are a great addition if you are going to keep an incandescent bulb, but the flimsy reflector in them won't sufficiently scatter the light from an HID set-up.


Top
 Profile

 Post subject: Re: HID Headlights?
 Post Posted: Sun Jun 23, 2013 11:52 pm
Offline
Moderator
User avatar

Joined: Mon Jun 02, 2003 11:15 pm
Posts: 14747
Location: Catalina, AZ
The scattering is why I'm considering a projector. I had a 300ZX last year with some drop-in HIDs in a glass housing. They were bright as @$#% but, like you said, when they weren't aimed almost right at the ground they blinded everybody else.

_________________
MR.com Facebook page
'92 Sierra - EBL/TBI-fed Vortec 383/700R4/3.08
'87 Fiero GT - 2.8/5-speed
'78 Malibu - Vortec 350/4-speed (for now)


Top
 Profile

 Post subject: Re: HID Headlights?
 Post Posted: Mon Jun 24, 2013 12:13 am
Offline
MalibuRacing Junkie
User avatar

Joined: Sat May 15, 2004 7:26 am
Posts: 15769
Location: North Jersey
TTLSX418 wrote:

You will find either the D1R, D1S, or D2R. The Inifniti and the prius have the D2R, the Escalade has the D1R, and the D1S is a newer style bulb that has the ignitor built on to the base of the bulb eliminating the ballast.



Yeah, IDK what I was thinking when I typed HB5. D2R is what I SHOULD have typed. I can't even blame spell check on that one! :lol:

Tommy

_________________
20k mile '80 Malibu, currently undergoing long term (aka no money) factory style install LS6 454, Cowl Induction, Legend LGT 700 5 speed. Full Global West suspension, 17" N90 wheels, 12" front/11" rear disc brakes, 9" 3.70 Auburn Pro posi.

"The older I get, the faster I was"


Top
 Profile

 Post subject: Re: HID Headlights?
 Post Posted: Mon Jun 24, 2013 12:51 am
Offline
Amateur Racer
User avatar

Joined: Tue Apr 23, 2013 4:28 pm
Posts: 108
Location: Baton Rouge, La
Doober wrote:
The scattering is why I'm considering a projector. I had a 300ZX last year with some drop-in HIDs in a glass housing. They were bright as @$#% but, like you said, when they weren't aimed almost right at the ground they blinded everybody else.


Yeah to be honest I've contemplated taking them off and replacing them with the factory set-up because with the car hitting as hard as it does it makes one of the reflectors in mine bounce. That's annoying because while I let it warm up it looks like it is having a seizure because the reflector is bouncing so much.

You get what you paid for tho, like Tommy said... the more money you spend the better quality kit you get and retro-fitting a projector is the best way. So clean too.


Top
 Profile

 Post subject: Re: HID Headlights?
 Post Posted: Mon Jun 24, 2013 8:21 pm
Offline
Amateur Racer
User avatar

Joined: Thu Feb 16, 2012 7:26 pm
Posts: 129
Location: New Jersey
Wow, i'm really impressed with the info on HID's and the level of maturity of the members of this forum. That exchange on any other forum could have gone down hill very fast and it didn't here.

I already purchased the clear Diamond cut glass before TTLSX418 suggested not to. But supposedly the glass has the "european" light pattern that some of the newer cars have. See here http://rimiusa.com/index.php?main_page=page_2. So hopefully i can aim them properly as to not blind oncoming traffic.

Now, regarding the relay kits, I have a question. My Malibu has the 4 headlight layout so it works as follows; in low beam, just the low beam filiment is lit and in high beam (in addition to the dedicated high beam headlight) just the high beam filiment is lit on the lo/hi headlight. Will the relay kit keep the (HID) low beam lit when going to high beam? Do I really need the Bi-Xenon for the lo/hi headlight or can i just put a single H4 HID in the lo/hi headlight position, which the relay will keep on in low and high beam, and just have the dedicated high beam headlight switch on and off?

I have a Pontiac G8 with factory HID headlights and that is the way the lo/hi works in that car (HID lo on all the time and the hi switching on and off).

Who knew that putting in HID's could get so involved? :)

thanks,
Scott

_________________
Life's a Drag?...Race!


Top
 Profile

 Post subject: Re: HID Headlights?
 Post Posted: Tue Jun 25, 2013 2:58 pm
Offline
Amateur Racer
User avatar

Joined: Tue Apr 23, 2013 4:28 pm
Posts: 108
Location: Baton Rouge, La
To answer your question...

If you have the separate beams you will have to purchase two HID kits. The Bi-Xenon kit is used for headlight systems that contain both the low and high beams in the same bulb like the 9003/9004/9007 (there may be more).

Take my daily for example. I have a 07' Trailblazer SS that I drive to and from work. It has separate low/high beam set up. I would have to order a 9006 HID kit for the low beam, and a 9005 HID kit for the high beam set-up. Now the way the truck works is that when you are driving with low beams and want to switch the high beams it turns the low beams off and runs strictly the high beams. Some vehicles do this, some don't. Some vehicles run both lows and highs, when the high beams are selected.

In YOUR case, you would have to run two harness kits, one for the low beam kit and one for the high beam kit. If I were in your shoes I would run your low beams on a relay set-up and run your high beams directly plugged into the vehicle harness with no relay kit. The reason I say that is because you probably barely use your high beams and it doesn't really warranty a harness kit in that sense. Personally I don't run high beams on any of my vehicles because I really just never use them. I live in the city limits and do most of my driving there. Plus flashing high beam HID's is kind of pointless because they have to be on and fully warmed up to be their brightest, whilst incandescent bulbs react quicker.

That's completely your choice though. HID's aren't really complicated BUT there is a lot of information and options to consider when deciding, correctly, what is best for your needs. I hope this answers your question, let me know if you have anymore.

ALSO - I wanted to comment on the city lights most of the conversion housings come with, if you want to use them you are going to come into some trouble with putting the headlight into the car. It might be different with separate low's/high's but if memory serves me correctly I have to notch my headlight buckets to clear the bulb and harness because it wouldn't allow the light itself to sit back in the bucket all the way. People normally just take them out and cover the hole with electrical tape. The city lights don't come pre-wired either, so you will have to tap into an existing power source. I gotta say though they do look good with LED lights that give off 180* of light.


Top
 Profile

 Post subject: Re: HID Headlights?
 Post Posted: Tue Jun 25, 2013 4:05 pm
Offline
Amateur Racer
User avatar

Joined: Thu Feb 16, 2012 7:26 pm
Posts: 129
Location: New Jersey
I was going to stick with incandescents for the dedicated high beams specifically for the reason you mention that they need time to warm up when they turn on. I just want to do HID for the low beam. FYI, the low beam glass I bought takes an H4 and the high beam glass takes an H1. I'll do a higher color temp H1 for the high beam to closer match the HID's.

So I guess my question boils down to this, will the relay kit keep the low beam on when I switch to high beams? Currently they turn off, somewhat similar to your truck.

Regarding the city lights, I was avoiding them and the glass I bought doesn't have provisions for them anyway.

_________________
Life's a Drag?...Race!


Top
 Profile

 Post subject: Re: HID Headlights?
 Post Posted: Tue Jun 25, 2013 4:48 pm
Offline
Moderator
User avatar

Joined: Mon Jun 02, 2003 11:15 pm
Posts: 14747
Location: Catalina, AZ
For a bi xenon setup I plan on tapping into the wire running from the headlight switch to the high/low switch, this will keep the bulbs on all the time (trigger wire for a relay), and the high/low switch will still retain power for triggering the shield for high/low beam... this is an H4 setup of course with 2 housings, not 4.

_________________
MR.com Facebook page
'92 Sierra - EBL/TBI-fed Vortec 383/700R4/3.08
'87 Fiero GT - 2.8/5-speed
'78 Malibu - Vortec 350/4-speed (for now)


Top
 Profile

 Post subject: Re: HID Headlights?
 Post Posted: Tue Jun 25, 2013 5:47 pm
Offline
Amateur Racer
User avatar

Joined: Tue Apr 23, 2013 4:28 pm
Posts: 108
Location: Baton Rouge, La
Wagon Master wrote:
So I guess my question boils down to this, will the relay kit keep the low beam on when I switch to high beams? Currently they turn off, somewhat similar to your truck.


The relay kit uses the signal from your harness to turn the headlights on, the relay kit itself just uses battery power rather than harness power, if that makes sense. So to answer your question, no it won't. It should turn off whenever you switch to high beams, provided that is the way your headlights normally work.


Top
 Profile

 Post subject: Re: HID Headlights?
 Post Posted: Tue Jun 25, 2013 7:27 pm
Offline
Amateur Racer
User avatar

Joined: Thu Feb 16, 2012 7:26 pm
Posts: 129
Location: New Jersey
Yes, it makes sense. I understand how relays work and how they are used. I thought the HID relay kit might also have a feature that works similar to the relay kit that you would get for the 88-98 Chevy trucks to keep the low beams on when switching to high beams. Maybe there is a way to adapt that relay kit to the car in addition to the HID relay kit.

whats a couple of more relays? Just add it to the collection of the fuel pump relay, the fan relays, the painless wiring harness relays, etc... :)

Then again I could run a wire off the headlight switch as doober suggested or even trigger the HID relay from the parking lights. I wouldn't be able to run parking lights only, but how often do you really do that?

_________________
Life's a Drag?...Race!


Top
 Profile

 Post subject: Re: HID Headlights?
 Post Posted: Mon Jul 08, 2013 9:09 am
Offline
Amateur Racer
User avatar

Joined: Thu Feb 16, 2012 7:26 pm
Posts: 129
Location: New Jersey

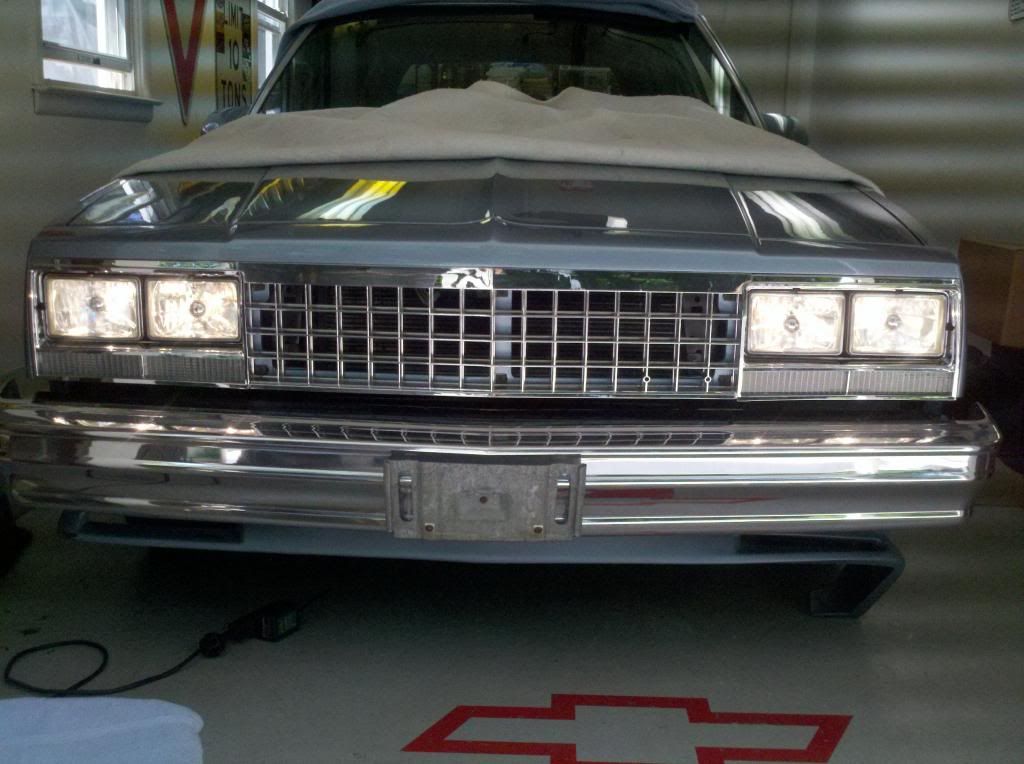

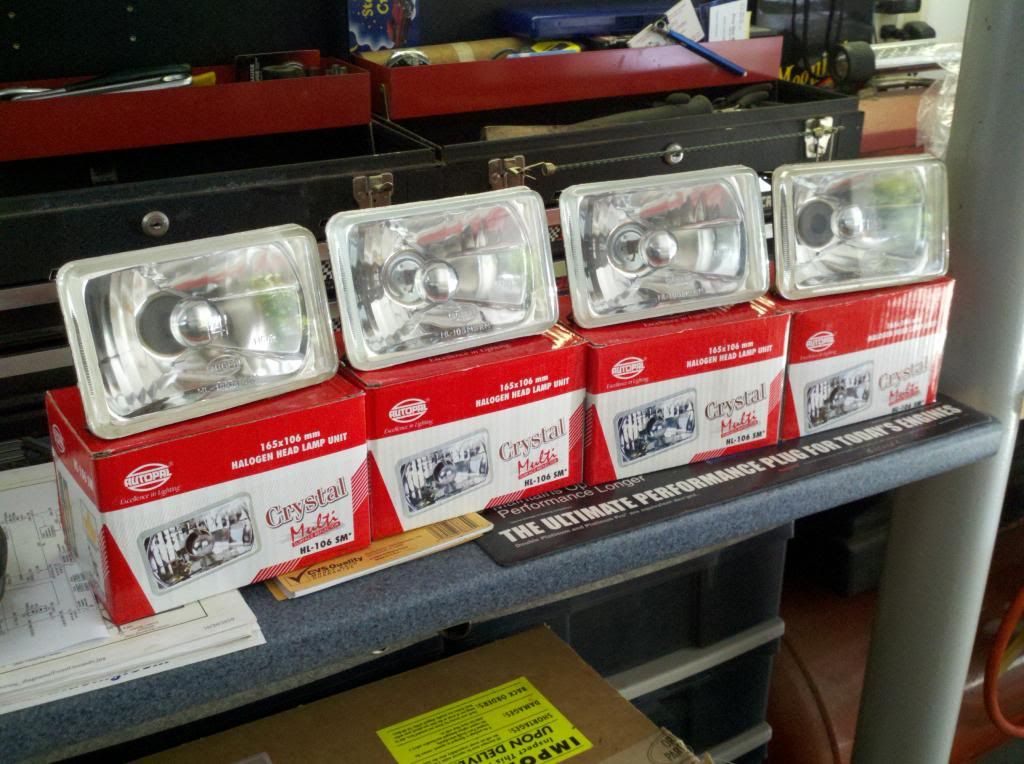

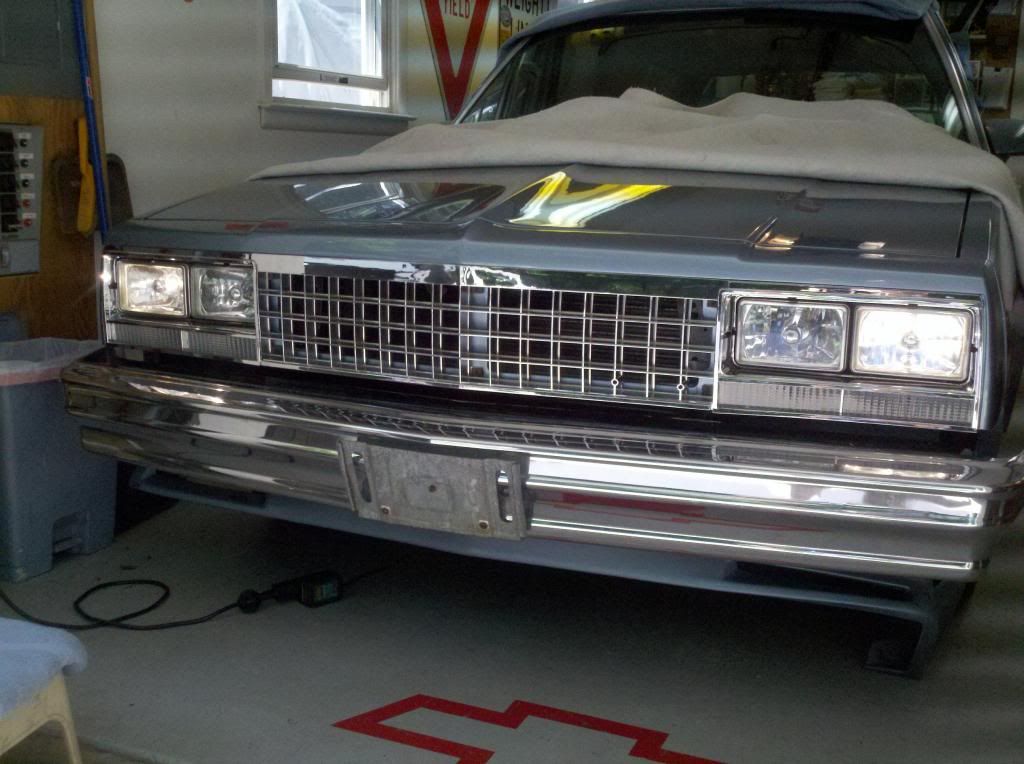

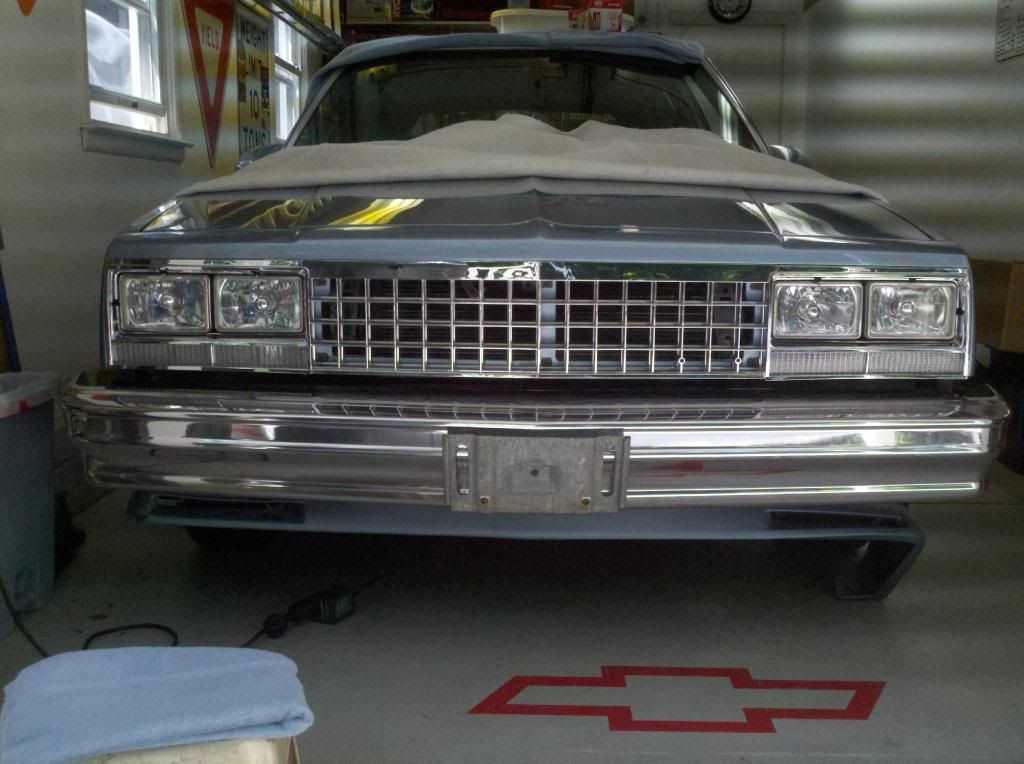

I installed the H4 Low and H1 High conversion clear diamond cut headlights this weekend and here are some pics of the end result. I haven't order the HID's yet as I wanted to get these in first. So these pics show the 4k incandescents that came with headlights. I also didn't get around to aiming the headlights. When I do, I'll post a picture of the light pattern on the garage door.

Before

After

Low Beam

High Beam

_________________
Life's a Drag?...Race!


Top
 Profile

 Post subject: Re: HID Headlights?
 Post Posted: Mon Jul 08, 2013 10:17 am
Offline
Amateur Racer
User avatar

Joined: Tue Apr 23, 2013 4:28 pm
Posts: 108
Location: Baton Rouge, La
yeah i'd leave the high beams as normal incandescent bulbs, and use the HID's in your low beams. That way if people flash you, you'll actually have a full on bright light to flash back.


Top
 Profile

 Post subject: Re: HID Headlights?
 Post Posted: Mon Jul 08, 2013 11:42 am
Offline
Amateur Racer
User avatar

Joined: Thu Feb 16, 2012 7:26 pm
Posts: 129
Location: New Jersey
Yep, that's the plan...just now have to decide whether to go Bi-xenon or just an single HID for the low, order the kit and the relays, and figure out how to keep the HID low beam on when it goes to high beam...

_________________
Life's a Drag?...Race!


Top
 Profile

 Post subject: Re: HID Headlights?
 Post Posted: Mon Jul 08, 2013 3:22 pm
Offline
Amateur Racer
User avatar

Joined: Tue Apr 23, 2013 4:28 pm
Posts: 108
Location: Baton Rouge, La
The second picture shows that all 4 headlights are on when the high beams are activated. So if you replaced the low beam with an HID kit, why wouldn't it stay on when you activated the high beam?


Top
 Profile

 Post subject: Re: HID Headlights?
 Post Posted: Mon Jul 08, 2013 4:26 pm
Offline
Amateur Racer
User avatar

Joined: Thu Feb 16, 2012 7:26 pm
Posts: 129
Location: New Jersey
Because there are two filiments in the low beam headlight, one for the low and one for the high. When you switch to high beam, the low beam filiment turns off and the high beam filiment turns on.

_________________
Life's a Drag?...Race!


Top
 Profile
