I just finished up upgrading the brakes on my father’s 1980 El Camino. This is a daily driver that I am testing several different master cylinders for a manual brake conversion swap. His brakes worked good before exchanging out all the parts, but I wanted to take out most of the variables when testing master cylinders. First and foremost, I wanted to make sure this 1980 El Camino did not have quick take up front brake calipers. In my research, quick take up calipers will make it difficult do get good pressure to the caliper when using manual brakes.

Here is the rundown of the parts I used:
• Speedway Motors Big Bore Metric Calipers - PN# 91031040 $59.99 each
• Bendix Titanium metallic front brake pads (FF Rated) - PN# MKD154 $38.22
• Turned the stock rotors $30 Local Auto Parts Store $15 each
• Edelbrock/Russel Stainless Steel Braided Flex Lines PN# 692100 $54.80
• Wagner 7/8” Wheel Cylinders from an manual brake S10 PN# F110261 $13 each
• Wagner Thermo Quiet Rear Shoes (EE Rated) - PAB514R from O’Reilly’s Auto $32.99

The Speedway Motors big bore metric calipers (2.75” bore v 2.38” bore standard) came with brake pads, but the pads did not have a rating on them. I DID NOT want to use a brake pad that would need a lot of heat to be effective. The weight difference between the two calipers is less than ½ of a pound. This is a daily driver and not an autocross car, so I chose the Bendix Titanium pads because my research and reviews showed them to have good cold clamping friction. Based on the EE rating, the rear shoes should also have good cold stopping abilities. Look on the pads or shoes when you buy them to make sure they have a rating on them. The higher up the alphabet you go the hotter the pads will have to be to work effectively. Pads or shoes with no rating on them should be avoided.

It was surprising to me to find a 24mm strait bore aluminum master cylinder on this 1980 El Camino. I didn’t know they made aluminum ones with a strait bore for g-bodies. I had always been under the impression, because it was aluminum, that this was a step bore master for quick take up calipers. I do know for a fact that any NEW replacement master cylinders for g-bodies will for than likely be cast iron. So if you want aluminum master cylinder for power or manual brakes that bolt up to your brake lines, a rebuilt master cylinder may be your only option.

I changed out the 30 year old rubber brake lines with the braided stainless. The front lines were a little longer than the originals, but I routed them so they were not touching any suspension pieces. The rear was a little more difficult to replace because the clip that holds the rubber line to the frame was difficult to get at. The new braided rear line was fairly easy to install also.

The hardest part to the entire swap was installing the rear wheel cylinders. Getting the clip off was not too bad, but getting the clip back on was a pain. I did it with two c-clamp, and open ended wrench, and the lid off of an old battery terminal cleaner (don’t ask for these details because I do not recommend doing it this way. G-H-E-T-T-O).

After the system install, bleeding the fluids, and bedding in the pads and shoes I took it out for a spin to test the brakes with the same master cylinder and vacuum booster from the original test with the original brakes. Even though I was able to easily lock up all four wheels, it seems to have a little more pedal travel before you could feel the brakes start to grab. I believe this has to do with the increased piston area in the front calipers and rear wheel cylinders while using the strait bore 24mm master cylinder. The 24mm master cylinder will have more pedal travel to fill the extra volume of fluid required by the calipers and wheel cylinders.

If keeping the vacuum booster, it might be best to step up to the step bore master cylinders that are used on the 1981 and up g-bodies. The primary bore is still 24mm, but it also has a larger step bore of 36mm that will increase the volume of fluid to the larger calipers and wheel cylinders.

For the manual brake setup, I am going to test the original strait bore aluminum master cylinder with 24mm bore. Stay tuned for an update within the next month.

_________________
David Schultz
MalibuDave
www.manualbrakes.com
https://www.facebook.com/manualbrakescom-576443512373024/


Last edited by malibudave1978 on Wed Jul 18, 2012 7:24 pm, edited 10 times in total.

Top
 Profile

 Post Posted: Mon Aug 29, 2011 11:15 pm
Offline
Pro Stocker

Joined: Sun Apr 17, 2005 5:13 pm
Posts: 1459
Location: spgfd ohio
I had a brain fart back. which port on the mg is for the front brakes?. o think I hotone backwards

_________________
adam wildman USN vet
79 malibu wagon 454bbc T-56 7.5/8.8 hybrid 3.08
99 C3500HD dmax/4L85
smooth seas never made a skillfull salior


Top
 Profile

 Post Posted: Tue Aug 30, 2011 6:43 am
Offline
Amateur Racer

Joined: Tue Jun 08, 2004 1:06 pm
Posts: 216
Location: Houston, TX
Rear port is for the front brakes. Front port is for the rear brakes.

_________________
David Schultz
MalibuDave
www.manualbrakes.com
https://www.facebook.com/manualbrakescom-576443512373024/


Top
 Profile

 Post Posted: Tue Sep 06, 2011 10:14 pm
Offline
Pro Stocker

Joined: Sun Apr 17, 2005 5:13 pm
Posts: 1459
Location: spgfd ohio
and of course i put them backwards...... with old straight bore mc didnt really matter... now i got a stepped mc of a monte carlo.

_________________
adam wildman USN vet
79 malibu wagon 454bbc T-56 7.5/8.8 hybrid 3.08
99 C3500HD dmax/4L85
smooth seas never made a skillfull salior


Top
 Profile

 Post Posted: Wed Sep 07, 2011 8:12 pm
Offline
Amateur Racer

Joined: Tue Jun 08, 2004 1:06 pm
Posts: 216
Location: Houston, TX
malibu795 wrote:
and of course i put them backwards...... with old straight bore mc didnt really matter... now i got a stepped mc of a monte carlo.


How did you have the the lines reversed? They are two different sizes.

_________________
David Schultz
MalibuDave
www.manualbrakes.com
https://www.facebook.com/manualbrakescom-576443512373024/


Top
 Profile

 Post Posted: Wed Sep 07, 2011 8:17 pm
Offline
Pro Stocker

Joined: Sun Apr 17, 2005 5:13 pm
Posts: 1459
Location: spgfd ohio
malibudave1978 wrote:
malibu795 wrote:
and of course i put them backwards...... with old straight bore mc didnt really matter... now i got a stepped mc of a monte carlo.


How did you have the the lines reversed? They are two different sizes.

ripped the entire rusted out brake lines off the car and started with a roll or 3/16, 5/16 line and rusell braided brake lines.

_________________
adam wildman USN vet
79 malibu wagon 454bbc T-56 7.5/8.8 hybrid 3.08
99 C3500HD dmax/4L85
smooth seas never made a skillfull salior


Top
 Profile

 Post Posted: Sat Oct 15, 2011 7:17 am
Offline
Dragway Regular
User avatar

Joined: Mon Aug 11, 2003 5:59 pm
Posts: 1073
Location: Central WISC
Hey malibudave1978, nice post. Question... you wrote:
The Speedway Motors big bore metric calipers (2.75” bore v 2.50” bore standard)
I thought the standard bore was 2.38", so wouldn't the 2.50" also affect the brake bias-and peddle travel?, and the 2.75" even more? Or did some later year G-bodys use the larger 2.50" calipers?
Did not know the s-10 step up bore size was 31.5, that may be the direction I'll go also.
Good job posting those part #'s
Let us know how this turns out.

_________________
'79 Malibu, Body-off, Mini-tubbed, Notched. 406 Hyd roller/2004r, 8.5" GN rear, Non A/C car, manual brakes/manual steering, tucked bumpers. Owned since 1983. First car!


Top
 Profile

 Post Posted: Sun Oct 16, 2011 10:49 am
Offline
Amateur Racer

Joined: Tue Jun 08, 2004 1:06 pm
Posts: 216
Location: Houston, TX
Wile E wrote:
Hey malibudave1978, nice post. Question... you wrote:
The Speedway Motors big bore metric calipers (2.75” bore v 2.50” bore standard)
I thought the standard bore was 2.38", so wouldn't the 2.50" also affect the brake bias-and peddle travel?, and the 2.75" even more? Or did some later year G-bodys use the larger 2.50" calipers?
Did not know the s-10 step up bore size was 31.5, that may be the direction I'll go also.
Good job posting those part #'s
Let us know how this turns out.


I thought stock was 2.50", but since you measured them, stock is 2.38"

The manual brake conversion went well when using the manual brake hole that is already predrilled in the factory vacuum booster power brake pedal. I kept the stock , 31 year old, 24mm master cylinder that came with the stock power boosted brake system. I kept the 24mm master, for now, because I upsized the front calipers and wheels cylinders. It stopped the car ok, but I felt I still had too much pedal travel and I couldn't get the front brakes to lock up. I am going to rebleed the calipers, unbolted from the spindle, to point the bleeder screws up at the 12 o'clock position. If this doesn't do the trick, I will bolt on a brand new manual brake master cylinder from a 1978 to 1980ish g-body. This master cylinder has a smaller bore which should give me higher pressure at the pad.

Before manual brake conversion:

After manual brake conversion:

_________________
David Schultz
MalibuDave
www.manualbrakes.com
https://www.facebook.com/manualbrakescom-576443512373024/


Last edited by malibudave1978 on Wed Jan 04, 2012 9:14 pm, edited 6 times in total.

Top
 Profile

 Post Posted: Sun Oct 16, 2011 5:25 pm
Offline
Dragway Regular
User avatar

Joined: Mon Aug 11, 2003 5:59 pm
Posts: 1073
Location: Central WISC
Well it looks like 2.50" will be an tiny upgrade for me if I go with stock style calipers, I mic'd my original ones and the caliper piston does come out to 2.38", o.d. If you do go with the s-10 master cylinder, I'm curious to see how that works out.
Nice work.

_________________
'79 Malibu, Body-off, Mini-tubbed, Notched. 406 Hyd roller/2004r, 8.5" GN rear, Non A/C car, manual brakes/manual steering, tucked bumpers. Owned since 1983. First car!


Top
 Profile

 Post Posted: Sun Oct 16, 2011 8:48 pm
Offline
Amateur Racer

Joined: Tue Jun 08, 2004 1:06 pm
Posts: 216
Location: Houston, TX
Wile E wrote:
Well it looks like 2.50" will be an tiny upgrade for me if I go with stock style calipers, I mic'd my original ones and the caliper piston does come out to 2.38", o.d. If you do go with the s-10 master cylinder, I'm curious to see how that works out.
Nice work.


I stand corrected. I was under the impression that it was 2.50".

_________________
David Schultz
MalibuDave
www.manualbrakes.com
https://www.facebook.com/manualbrakescom-576443512373024/


Top
 Profile

 Post Posted: Sun Dec 11, 2011 7:31 pm
Offline
Amateur Racer

Joined: Tue Jun 08, 2004 1:06 pm
Posts: 216
Location: Houston, TX
Quick Update.

I rebled the front calipers unbolted from the spindle to try and get rid of some of the spongyness in the pedal. I did this to see if there was any more air in the system at the caliper by rotating the bleeder screw at the 12 o'clock position and bleeding the system. No air at the caliper, so I think the origanal 31 year old master cylinder has air in it or it is bad.

I am going to replace it with a new 7/8" bore master cylinder from a manual brake 1978 g-body ($60 from amazon). Though it is made of cast iron, it is the smallest bore master cylinder that readily bolts on. I know of no aluminum master cylinders that are 7/8" bore that will readily bolt on, other than one of the expensive aftermarket ones. I would also like to test a master cylinder from a Dodge Dakota. It has a 24mm bore, is aluminum, and with one brake fitting adapter, it bolts into place with the adapter plate I am using.

_________________
David Schultz
MalibuDave
www.manualbrakes.com
https://www.facebook.com/manualbrakescom-576443512373024/


Top
 Profile

 Post Posted: Tue Dec 27, 2011 5:51 pm
Offline
Amateur Racer

Joined: Wed Dec 28, 2005 5:05 am
Posts: 243
Location: St louis Mo
Can you elaborate on how you made the rod to go from the pedal to the master? I'm in the process of doing this swap and want to make a secure rod. I have one of your adapter plates btw.
Thanks
Cory

_________________
78 Malibu Wagon, Grandma Special 68K miles, Pump Gas 383 on the hit.
78 Malibu Coupe, E98 fed 406, RHS heads, TH350, 9inch.
86 Monte Carlo Ls, Alochol fed 383, TRZ Suspension, Powerglide.


Top
 Profile

 Post Posted: Tue Dec 27, 2011 9:14 pm
Offline
Amateur Racer

Joined: Tue Jun 08, 2004 1:06 pm
Posts: 216
Location: Houston, TX
Stroked383 wrote:
Can you elaborate on how you made the rod to go from the pedal to the master? I'm in the process of doing this swap and want to make a secure rod. I have one of your adapter plates btw.
Thanks
Cory


Cory,

I am not a machinist but this is the parts I initially used below and how I put together my linkage. I have since upgraded the rod end to a custom rod end designed my me. I designed my own because I wanted something that would not have the potential to fail and have a better fit on the pin (stud) with no slop.

I used:
1.25" long 1/2" daimeter industrial steel pin (stud)
Matching retention pin for the steel pin above (keeps the rod end from falling off the pin (stud)
5/16-24 RH spherical industrial rod end (high quality, not home depot stuff)
5/16-24 5.0" long grade 8 bolt (this will be modified into a master cylinder brake pedal pushrod)
5/16-24 grade 8 nut (this will lock the pushrod to the rod end and lock the length into place)

ATTENTION/NOTE: I used high quality industrial type material above for the rod end and the steel pin (stud). The stud and the rod end I bought online. The Home Depot/Lowes stuff is very low quality and SHOULD NOT be used. These are your brakes used for stopping your vehicle. Failure of these braking components will cause loss of your braking system and could cause injury or death. Do this modificatin at your own risk.

IMPORTANT: Make sure you have something to retain the brake pushrod to the master cylinder. If you don't, this will cause a total loss of brakes. Make sure you retain the brake pedal pushrod to the brake pedal. If you don't, this will cause a total loss of brakes.

I mocked up everything on the bench by removing my brake pedal assembly from underneath the dash of the car. I used a press to install the 1.25" long 1/2" diameter pin (stud) into the top manual brake hole on the brake pedal making sure that the hole for the retention pin was not inline with the power brake pin (stud) below it. This is a press fit and the pin will not move once installed.

I next modified the 5/16-24 spherical rod end. I used a press and pressed out the spherical ball. The hole will be a little larger than the 1/2" pin (stud) after you press out the spherical ball, but it will work. I then test fit the rod end on the 1/2" pin (stud) that I pressed onto the brake pedal making sure it slid over it without too much slop.

I next bolted up the aluminum manual brake adapter plate to the brake pedal assembly on the bench starting with the two lower holes first. If you have a gasket, DO NOT use the gasket during this proceedure. Next bolt your master cylinder to the aluminum manual brake adapter plate and brake pedal assembly.

Now we have to modify the length of the 5/16-24 grade bolt and also make it into a brake pedal pushrod. Screw the 5/16-24 grade 8 nut onto the 5/16-24 grade 8 bolt to where is ALMOST bottoms out on the bolt (do not tighten at the bottom, back it off of the bottom of the threads of the bolt so it is free to turn). Now screw the 5/16-24 grade 8 bolt onto the modified 5/16-24 rod end until it bottoms out (back it off slightly so it is loose and free to turn). Install onto the brake pedal pin (stud). Install the brake pedal switch into the brake pedal and screw it in only enough so it doesn't fall out (this will give you maximum brake pedal travel). Give the brake pedal switch a small tug to verify that it is securely threaded enough to hold. With the brake pedal against the brake light switch, swing the 5/16-24 grade 8 bolt up toward and against the bottom of the master cylinder. With a permanent marker, mark the bolt where it needs to be cut.

NOTE: If you are using a master cylinder with a deep pushrod retention hole, measure the depth of this hole and add it to the mark you placed on the 5/16-24 grade 8 bolt.

Once you determined the length you need, remove the pushrod assembly off the pedal and cut the bolt where you marked it. Once cut, reinstall onto pedal and test fit. If it is still to long, remove and trim a small portion off the end and refit. Once the correct length is found, round off the end ( I used an abrasive disc). Install the pushrod assembly back on the pedal, and adjust your pushrod out to where it barely touches the master cylinder piston.

If any one has questions about this install, please email me at:

david.schultz@manualbrakes.com

_________________
David Schultz
MalibuDave
www.manualbrakes.com
https://www.facebook.com/manualbrakescom-576443512373024/


Top
 Profile

 Post Posted: Wed Dec 28, 2011 4:29 pm
Offline
Amateur Racer

Joined: Tue Jun 08, 2004 1:06 pm
Posts: 216
Location: Houston, TX

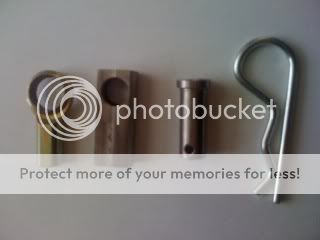

From left to right:
Modified spherical rod end
Custom steel clevis designed by me to accept a 5/16" brake push rod
1.25" long, 1/2" diameter pin (stud)
Retention Pin - a little overkill, but it is easy to remove and install.

The modified spherical rod end I drilled out to 5/8" and installed a bronze bushing on the pin (stud) to take up the slop in the pedal. It worked, but it required spacers/washers also to keep the rod end from moving sideways on the pin (stud).

The custom steel clevis I designed takes out the slop and the side to side play.

_________________
David Schultz
MalibuDave
www.manualbrakes.com
https://www.facebook.com/manualbrakescom-576443512373024/


Top
 Profile

 Post Posted: Wed Dec 28, 2011 5:59 pm
Offline
Dragway Regular
User avatar

Joined: Mon Aug 11, 2003 5:59 pm
Posts: 1073
Location: Central WISC
:shock: Oh my...the devils in the details. I'll be setting mine up shortly. After reading all this...All I can say is WOW.
malibudave1978...are you a rocket scientist?..I mean that in a good way.

_________________
'79 Malibu, Body-off, Mini-tubbed, Notched. 406 Hyd roller/2004r, 8.5" GN rear, Non A/C car, manual brakes/manual steering, tucked bumpers. Owned since 1983. First car!


Top
 Profile
